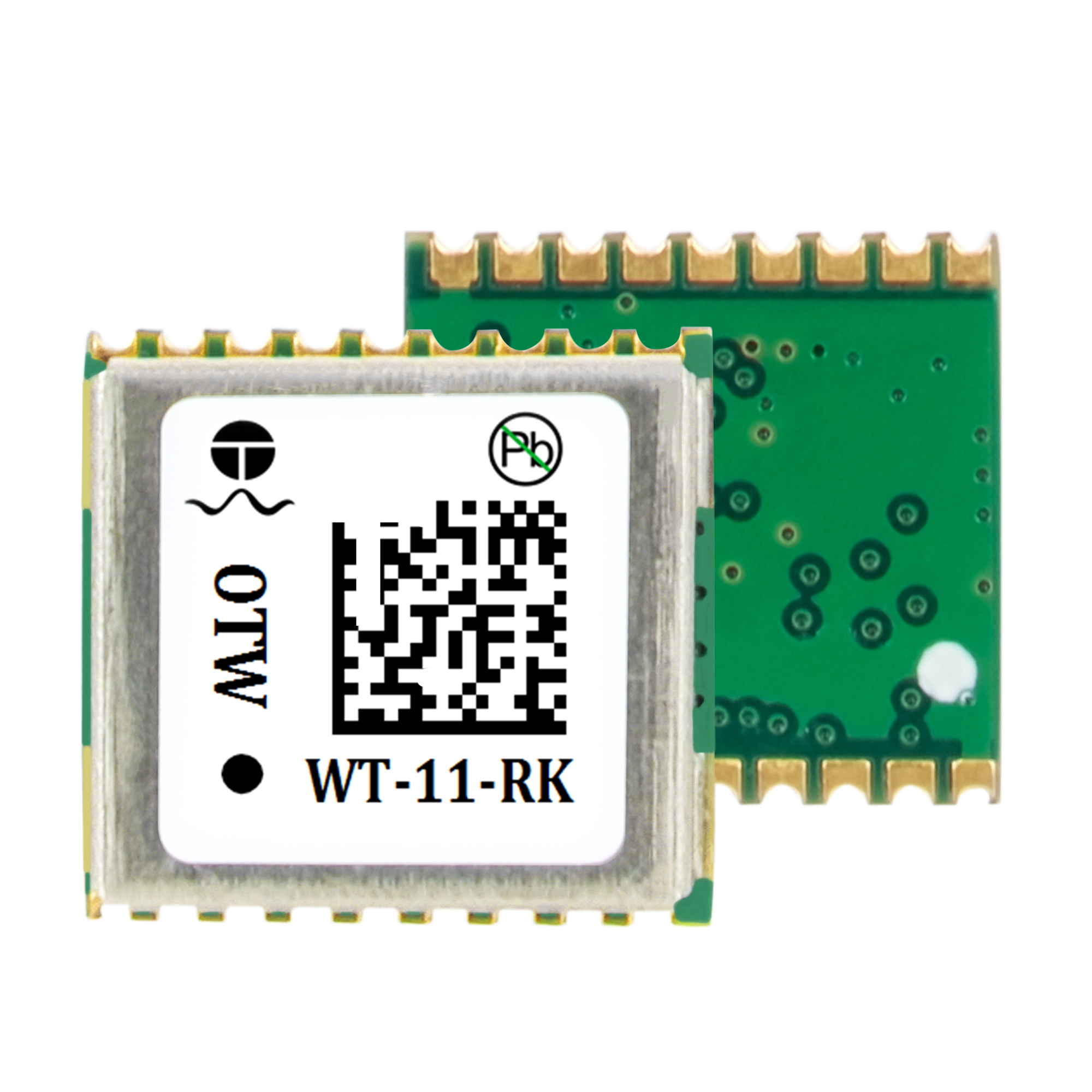

WT-11-RK Advanced Dual-Frequency RTK Algorithm GPS Module For High Accuracy

Overview

Application:

● Base station, power, communication positioning field ● Surveying and mapping products such as area measurement and distance measurement ● Synchronize UTC time and timing areas ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent Internet of Things, intelligent driving, drones and other fields ● Shared bikes, wearable devices, etc

Features:

●1010 size & 18PIN LCC package, PIN 2 PIN compatible with industry mainstream modules(Minimum feature set) ●Support BDS B1I/B2a/B1C, GPS L1C/A/L5, GAL E1/E5a, GLONASS L1 four-system dual-frequency ●Built-in dual frequency RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning ● Ultra-small size, overall size :9.7x10.1x2.4mm

Bottom view

Module pin allocation
