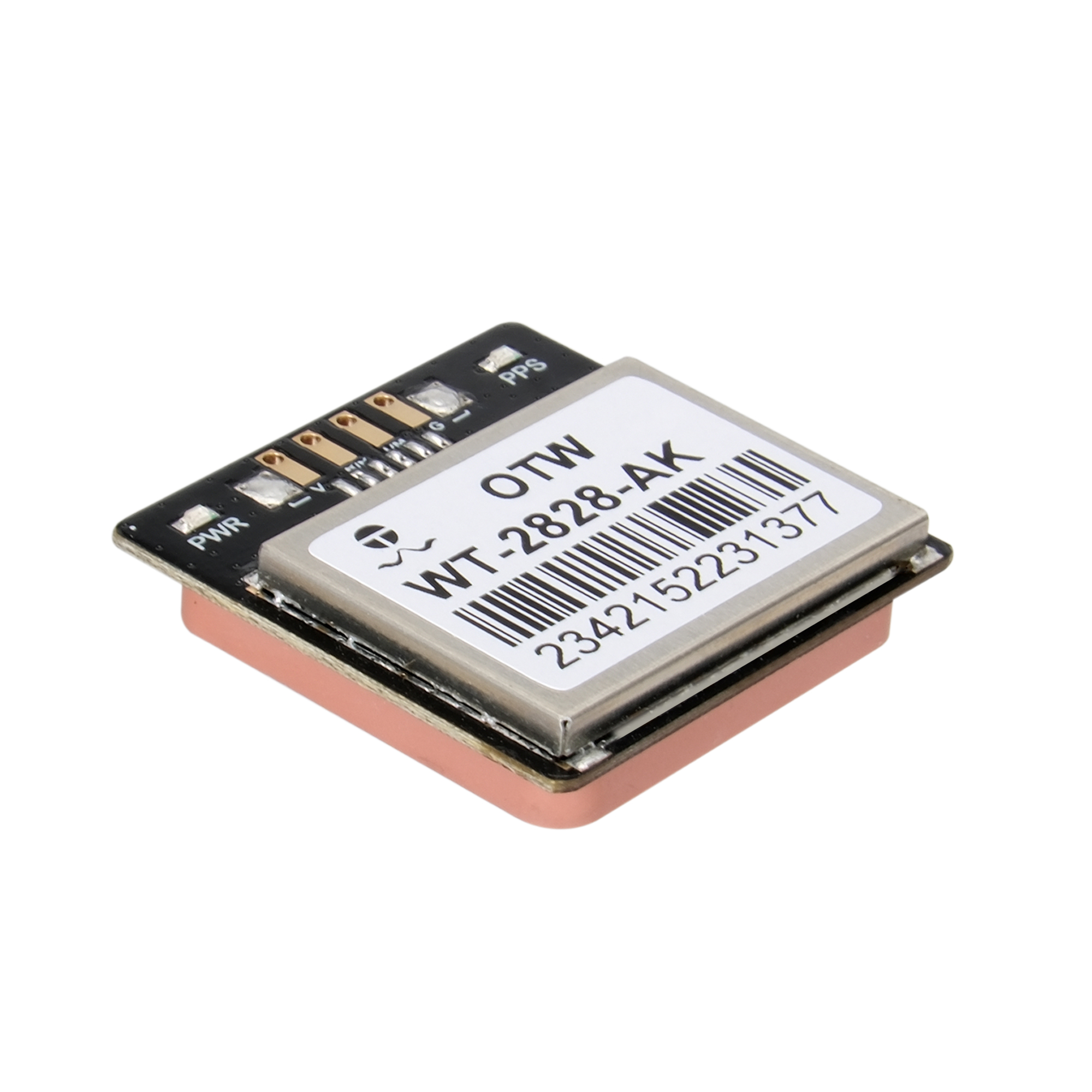

WT-2828-AK GPS Antenna Module Integrated With Ultra-High Sensitivity For Drones And Law Enforcement
Product descriptions from the supplier
| Product performance | |
| Model | WT-2828-AK |
| Receiver type | GPS/QZSS |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| NMEA messages | RMC,VTG,GGA,GSA,GSV,GLL |
| Available baud rate | 4800bps~921600bps(default 115200bps) |
| Channel | 56 |
| Sensitivity | Tracking -162 dbm Hot start -148dBm Cold start -148dBm |
| Cold start | Average 29seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal accuracy 2.5m Velocity: 0.1m /s Timepulse signal: RMS 30 ns |
| 18Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -10 Hz |
| Positioning mode | A-GNSS |
| Port | |
| Port | UART/TTL/R232 |
| Physical property | |
| Type | 1.25mm 6pins connector |
| Size | 28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm) |
| Power supply | |
| Voltage | 3V~5V |
| Power Consume | 35mA@3.3V |
| Oerating Environment | |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
|
|
