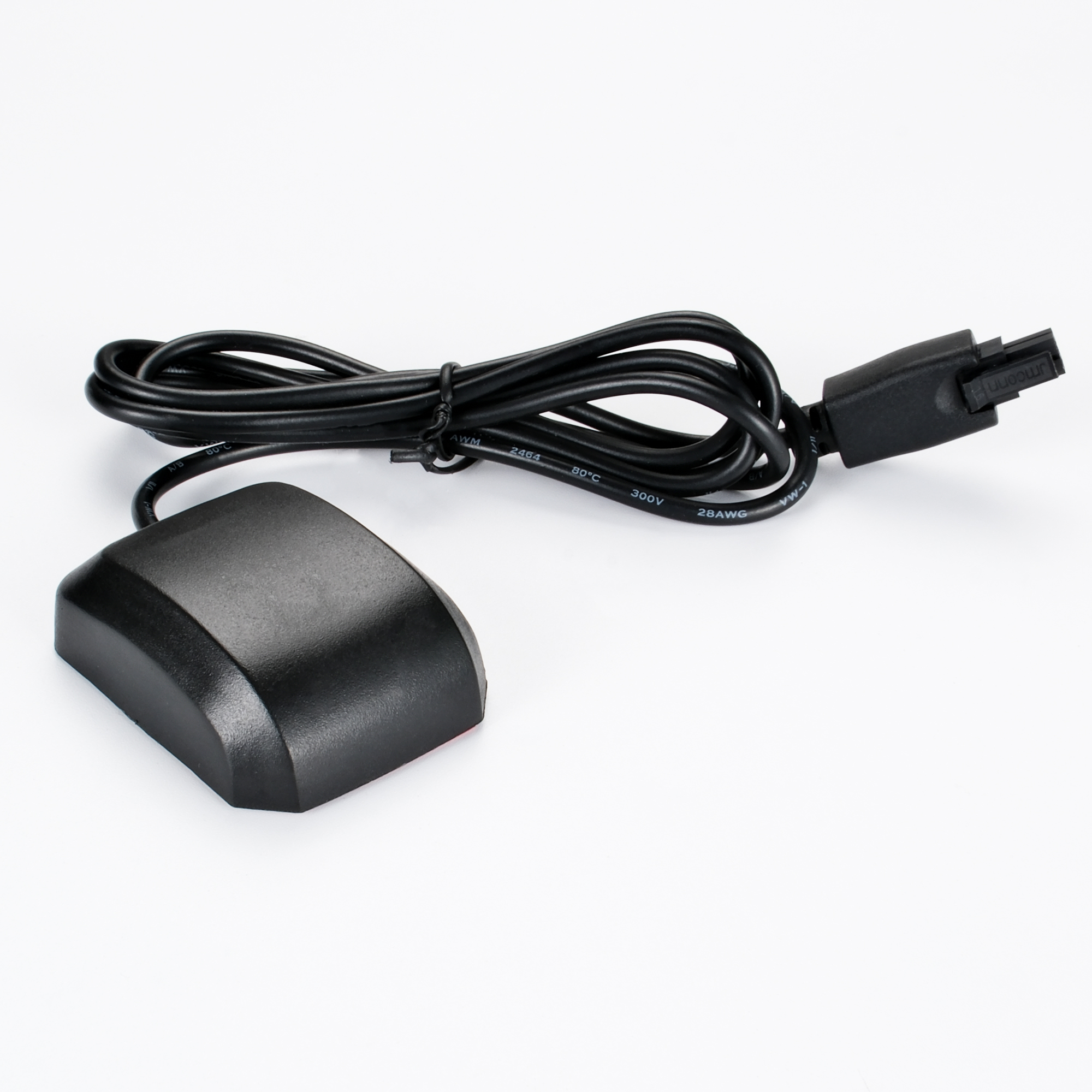

Molex Connector UBLOX-M8030 R232 GPS Receiver Antenna G Mouse car tracking acc alarm gps tracker for vehicles
Product descriptions from the supplier
Overview
● Tracking products such as personal positioning and vehicle navigation positioning
● Drones, law enforcement equipment
● Pocket computers and other portable navigation devices
● Track recording and GNSS data point calibration
● Measuring equipment
● Agricultural positioning and other products
● Timing equipment
● Automotive Internet of Things
Features:
● Positioning module and antenna integrated
● Can receive 3 GNSS synchronously (GPS/BDS/GLN/GAL)
● Ultra-high sensitivity
● Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
● High performance, low power consumption
● Support for all satellite augmentation systems
● The operating temperature range of automotive grade chips is -40°C to +105°C
| Product performance |
| Model | WT-2828-UN-R232-M-2M |
| Chip | UBLOX-M8030 |
| Receiver type | GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1 |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| NMEA messages | RMC,VTG,GGA,GSA,GSV,GLL |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 72 |
| Sensitivity | Tracking: -167dbm Capture: -160dbm Cold start -148dbm |
| Cold start | Average 26seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal accuracy 2.0m CEP, Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns |
| 18Max Height | 18000 M |
| Max Speed | 500 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -18 Hz |
| Positioning mode | A-GNSS |
| Communication type | R232 level |
| Antenna | Built-in ceramic antenna |
| Connector |
| Connector type | Molex connector |
| Physical property |
| Type | 4 Pin |
| Size | 38mm*49mm*16mm (+/- 0.5mm) |
| Wire length | 2m (customizable) |
| Fixed mode | 3M adhesive or magnet (default 3M adhesive) |
| Power supply |
| Voltage | 3V~5V |
| Power Consume | 35mA@3.3V |
| Oerating Environment |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
